TECHNICAL DATA
| STANDARD TERMINALS | KUT 2.5 | KUT 4 |
| Voltage Current Conductor size H x W x T Insulation Stripping length Torque required for Screws Standard Packing 100 Nos. Colour (Standard On request) |
750 V 26 Amp 2.5 mm² 41 x 42.5 x 6 mm 10 mm 4 kg. cm* 100 Nos. Grey, Red, Yellow, Blue, Black |
750 V 34 Amp 4 mm² 46.4 x 42.5 x 6.7 mm 12 mm 5 kg. cm* 100 Nos. Grey, Red, Yellow, Blue, Black |
| ACCESSORIES | ||
| END PLATE - Type - Material - Thickness Std. Pkg: 100 Nos. |
KPNS Nylon 66 1.5mm |
KPX Nylon 66 2 mm |
| MOUNTING CHANNEL: Material : CRCA Steel Plating : Alkaline Zinc with yellow passivation CHK: 35mm CHS : 32mm Thickness: 1mm Thickness: 1.5mm |
CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
| SIDE CLAMPS: SCS SCSN SCKN SCUN |
SECS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
SECS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
| SMALL BARRIER PLATE: Standard Packing: 100 Nos. SB 1 SB 2 |
SB 1 |
SB 1 |
| CROSS CONNECTION LINK ASSEMBLY: Permanent Shorting - 2 way to 10 way Standard Packing : 50 Nos. |
CCLM 2.5 |
CCLA 2.5 |
| REMOVABLE SHORTING LINK WITH LONG STUD: | Link : RSL 2.5 Stud: LSR 2.5 - 6 |
|
| COMB TYPE SHORTING LINK: Material : Brass |
Type : SLC 2.5 (2 way to 10 way) Material : Brass |
|
| SLIDING TYPE MARKING LABEL: |
LABEL A |
LABEL A |
| SNAP-ON TYPE MARKING LABEL: Up to 3 Digits/Combination of Alphanumeric / Blank Standard Packing : 100 nos. |
Type : K 5.5 |
Type : K 6.5 |
| WARNING LABEL (With Nylon Screws): Standard Packing - 100 Nos. |
WL 2.5 | |
| GROUP MARKING CARRIER: Type: GMC Material : PVC For CHS type channel only. |
Available | Available |
* Withstanding Capacity of 1.5 times the value of Testing Torque mentioned in IEC-947
Technical Specifications may change in line with Technical Advances and Industry Standards
| KUT 6 | KUT 10 |
KUT 16 | KUT 35 |
| 750 V 44 Amp 6 mm2 46.4 x 42.5 x 8 mm 12 mm 8 kg. cm* 100 Nos. Grey, Red, Yellow, Blue, Black |
750 V 61 Amp 10 mm² 46.4 x 42.5 x 10 mm 12 mm 12 kg. cm 100 Nos. Grey, Red, Yellow, Blue, Black |
750 V 82 Amp 16 mm² 51x 44.5 x 12 mm 15 mm 12 kg. cm 100 Nos. Grey, Red, Yellow, Blue, Black |
750 V 135 Amp 35 mm² 58 x 51 x 17 mm 20 mm 25 kg. cm 50 Nos. Grey, Red, Yellow, Blue, Black |
| KPX Nylon 66 2 mm |
KPX Nylon 66 1.5mm |
KPY Nylon 66 2 mm |
(Not required) |
| CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
CHS 3 : 300mm - CHK-3 CHS 5 : 500mm - CHK-5 CHS 10 : 1 mt - CHK-10 CHS 20 : 2 mt Other lengths - on request |
| SCS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
SCS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
SCS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
SCS : Metallic : For CHS SCSN : Nylon 66 : For CHS SCKN : Nylon 66: For CHK SCUN : Nylon 66 : For CHS & CHK |
| SB 1 |
SB 1 | SB 1 | SB 2 |
| CCLA 6 |
CCLA 10 | CCLA 16 |
CCLA 35 K |
| Link : RSL 6 Stud: LSR 2.5 - 6 |
Link : RSL - 10 Stud : LSR 10 - 16 |
Link : RSL 16 Stud: LSR 10 - 16 |
Link : RSL 35 K Stud : LSR 35 K |
| Type : SLC 2.5 (2 way to 10 way) Material : Brass |
........... | ........... | ........... |
| LABEL A |
LABEL B |
||
| Type : K 8.0 | Type : K 10 | Type : K 12 | Type : K 17 |
| WL 6 | WL 10 | WL 16 |
|
| Available | Available | Available |
Available |

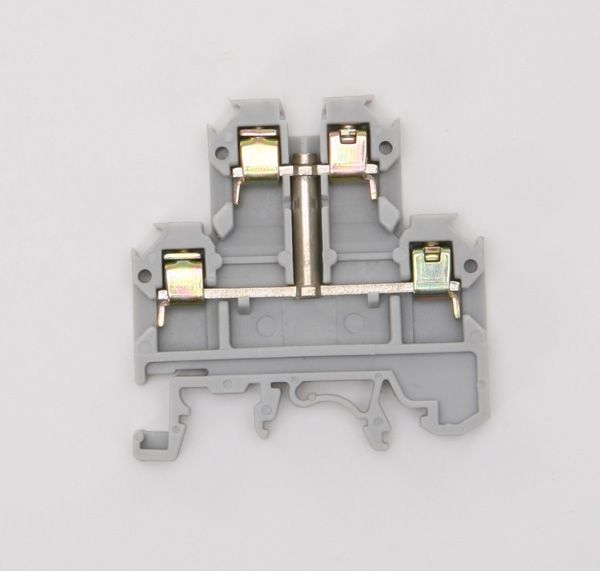

ELMEX RAIL TERMINALS
KUT 2.5
KUT 4
KUT 6
KUT 10
KUT 16
KUT 35 (Box Type)
Insulation Housing:
Housing material is of self-extinguishing type Engineering Thermoplastic Viz. Nylon 66. The housing is unbreakable. It is compact, and designed to give adequate creepage path & clearance. All the current carrying parts are fully shrouded. Window for cable entry is designed to guide the cable into clamp. Slot for marking label insertion is provided.
Terminal Insulation Housing - Material properties
The insulating material used in ‘elmex’ Universal Rail Mounted Terminal Blocks is Engineering Thermoplastic Polyamide 66 which is type Zytel 101L from Dupont - USA which is a UL approved plastic.
For Technical properties of screw-clamp assembly and currentbar - pl. refer leaflet on Std. Terminals of ‘C’ series.
| Melamine | Nylon 66 |
Polyproylene | |
| Comparative Tracking Index | >600 |
>600 |
>600 |
| 2. Upper Temp : Continuous | 130°C | 105°C |
95°C |
| 3. Upper Temp : Transient |
200°C |
180°C |
150°C |
| 4. Specific Gravity |
1.5 - 1.6 |
1.13 |
0.9 |
| 5. Volume resistivity (Ohm. cm.) | 10 10 - 10 16 |
10 14 - 10 15 |
10 15 - 10 16 |
| 6. Surface resistivity (Ohm) |
10 10 - 10 16 |
10 13 - 10 15 |
10 14 - 10 16 |
| 7. Flammability UL 94 |
Not Flammable | V2 |
V2 & VO |
| 8. Water absorption | 50 - 70 mg IS 221-1962 |
1.2 % D - 570 |
0.03% D - 570 |
