RTeck Pacific Products

Cable gland plate with 20mm tapped holes x2 (same side entries).

Dog bone cable gland plate with 20mm tapped holes x3.

Cable gland plate with 25mm tapped hole x1.

Dog bone cable gland plate with 25mm tapped holes x2.

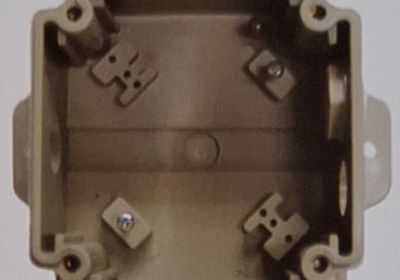

Standard box fitted with 3mm cable gland plates 20mm x 3 tapped entry holes. (No rail).

Rail/Elmex MPT4 micro terminal rail connectors x7 plus earth fitted model option for PVC / PVC cables rating 500V/32A/4mm.

4mm terminal rail connectors x7 plus earth fitted, model option for PVC / PVC cables. Rating 440V 36A.

4mm terminals x7 plus earth fitted with cross connected cable gland plates DB 20-3 and DB 25-2 fitted with 5 open entries. Multi purpose options for screened cables up to 25mm.

4mm rail connectors x7 plus earth/3mm cable gland plate 20mm x3 tapped entry holes fitted model option for screened cables.

Rail/Elmex MPT4 micro terminal rail connectors x4 fitted model option for PVC / PVC cables rating 500V/32A/4mm RTECKS – lowest price rail option.

1.5mm terminal rail connectors x6 plus earth fitted/for instrumentation / electrical purposes. Model option for PVC / PVC cables.

1.5mm terminals x 12 plus earth fitted with 3mm cable gland plate 20mm x 3 tapped entry holes model option for screened cables.

1.5mm x 12 plus earth fitted with cross connect cable gland plates DB20-3 and DB25-2 with 5 open entries. Multi purpose option for screened cables up to 25mm glands.

1.5mm terminal rail connectors x6 plus earth fitted with 3mm cable gland plate 20mm x3 tapped entry holes fitted for instrumentation/electrical purposes. (Model for armoured/screened cables)

Standard (no extras/empty) model options to be fitted out as required.
