Elettrocanali Slotted Duct

ELETTROCANALI SLOTTED DUCT

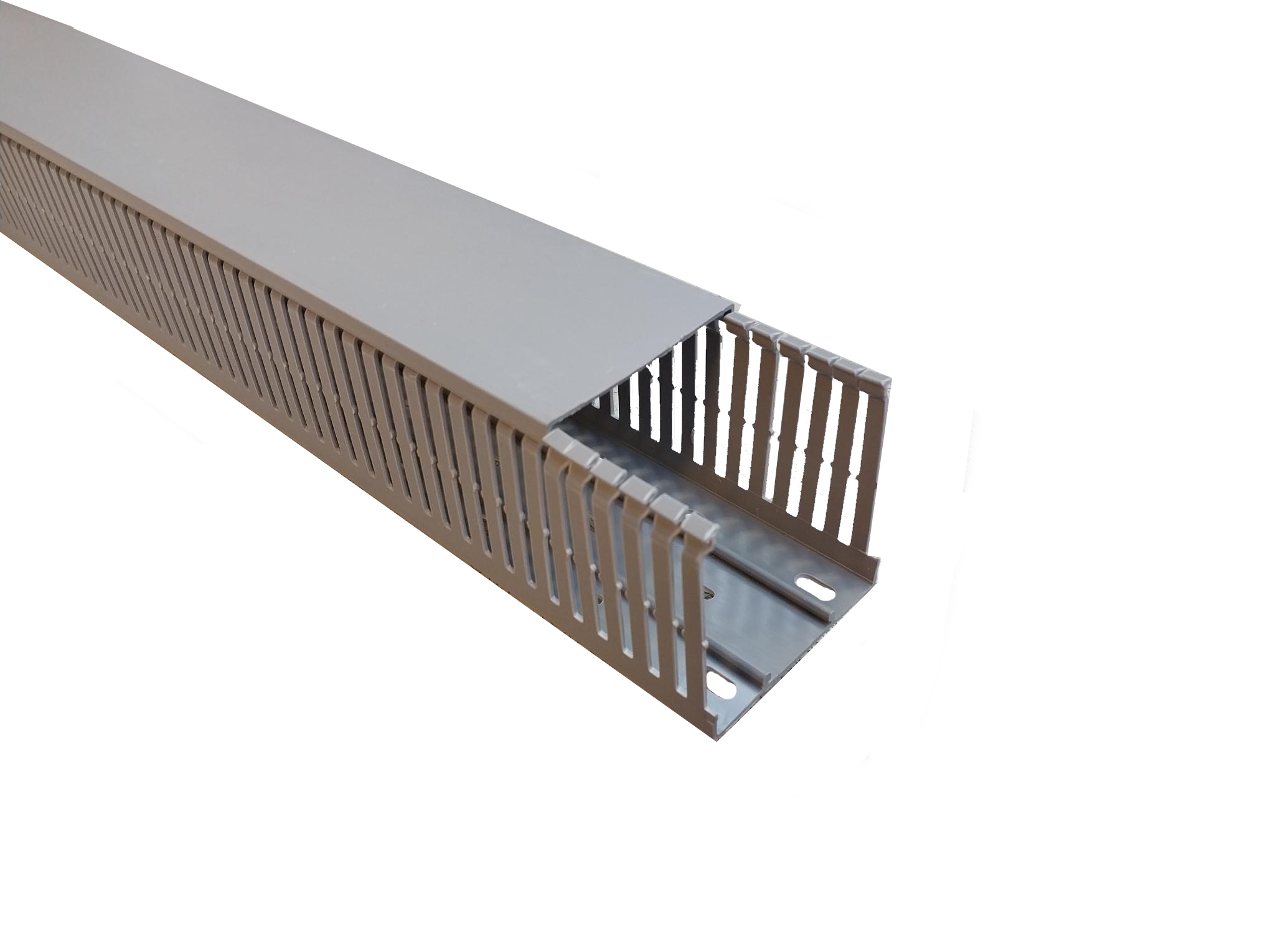

Slotted PVC Duct

  • Insulating plastic material, shockproof, self-extinguishing to UL94V-O and resistant to abnormal heat and fire up to 960C (glow-wire test) according to standards IEC 695-2-1
  • No burrs, the inside edges all rounded off.
  • Dimensional stability from -20 to +60C
  • Double breaking line, one at base of teeth for breaking off by bending outwards and one at base of wall for cutting the edge where the two ducts meet.
  • Flat lid. Allows for perfect Tee junctions.
  • Open top slot.
  • Standard 2-metre length.
  • Colour grey RAL 7030.
  • 18 variations. A wide selection of Duct widths for each range of Duct height.

With spacing 4/6 mm


Article
Dimensions WxH
All 2m lengths		 # Per Package
355 129 15 x 17 46
355 143 25 x 30 60
355 147 60 x 30 26
355 153 25 x 40 50
355 155 40 x 40 35
355 157 60 x 40 25
355 159 80 x 40 20
355 173 25 x 60 35
355 175 40 x 60 28
355 177 60 x 60 16
355 179 80 x 60 14
355 181 100 x 60 10
355 193 25 x 80 28
355 195 40 x 80 18
355 197 60 x 80 18
355 199 80 x 80 15
355 101 100 x 80 12
355 103 120 x 80 8
