Mistral Series IP65 Wall Mounting Switchboards

Polycarbonate IP 65 Wall Mounted Switchboards

  • Protection rating IP65
  • Colour grey Ral 7035
  • Material Self-extinguishing polycarbonate to UL 94 V-2
  • Resistant to abnormal heat and fire to 960°C (glow wire test) according to Standards IEC 695-2-1
  • Dimensional stability in continuous working conditions from -25° to + 115°C
  • Shockproof to 20 joules
  • Resistant to chemical agents (water, saline solutions, acids, bases and mineral oils)
  • Weatherproof
  • High resistance to UV
  • Extractable DIN rail frame to facilitate bench wiring
  • Enclosures designed to allow easy and tidy wiring and component installation
  • Transparent blue anti-glare doors
  • Semi-flush frames available
  • Cable entry on all sides
  • Suitable for installation in high-fire-risk environments (Standard CEI 64-8 V-2) and in AD_FT environments (Standard CEI 64-2 IV)
  • Approved to IMQ Standards CEI 23-48 & 23-49, IEC 670

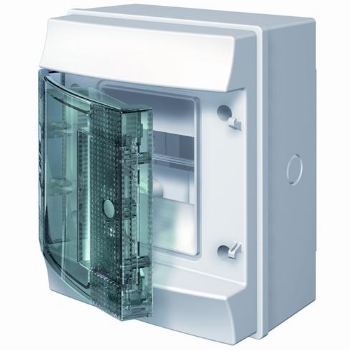

4 MODULES
Code
 		Dimensions (mm)

W x H x D

49570 with N & E Busbars 152 x 202 x 117

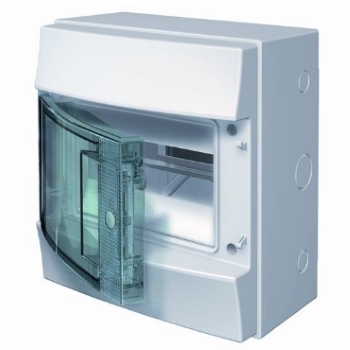

8 MODULES


Code

 Dimensions (mm)

W x H x D

49571 with N & E Busbars 232 x 250 x 154

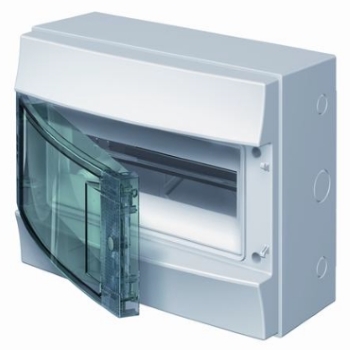

12 MODULES


Code

 Dimensions (mm)

W x H x D

49573 with N & E Busbars320 x 250 x 155

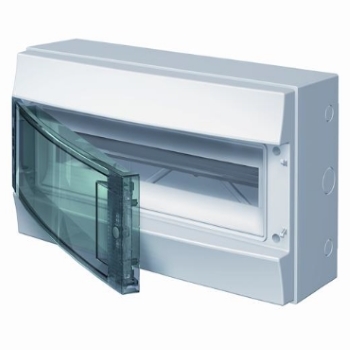

18 MODULES


Code

 Dimensions (mm)

W x H x D

495735 with N & E Busbars 430 x 250 x 155

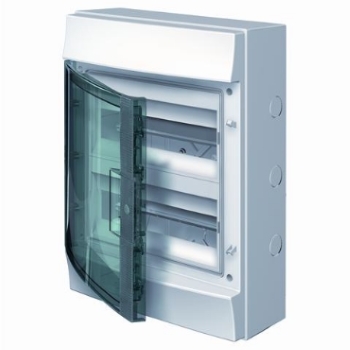

24 MODULES


Code

 Dimensions (mm)

W x H x D

49574 with N & E Busbars 320 x 435 x 155


36 MODULES


Code

 Dimensions (mm)

W x H x D

49575 with N & E Busbars 430 x 435 x 155 (2x18)

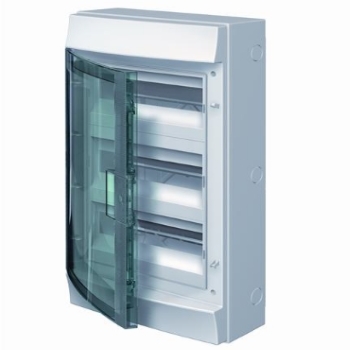

495755 with N & E Busbars 320 x 600 x 155 (3x12)

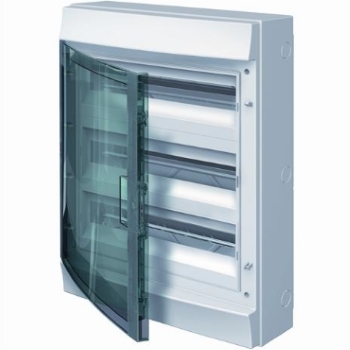

54 MODULES


Code

 Dimensions (mm)

W x H x D

495755 with N & E Busbars 430 x 600 x 155
