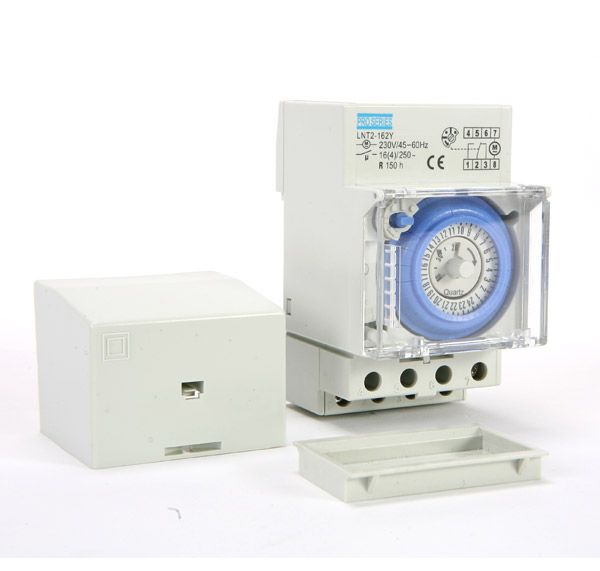

Pro Series LNT2-162Y Segment Time Switch

Pro Series LNT2 – 162Y Segment Time Switch


Constructed from thermoplastic and high quality internal mechanisms ensure accuracy and reliability.

Switches “ON” and “OFF” automatically following a pre-determined program

Suitable for use in domestic, commercial and industrial installations

24 hour dial with 30min segments

Permanent ON/OFF switch

Switching status indicator

Easy installation

Fits standard 35mm DIN rail and all standard consumer units or panel mount

Technical Data:

Rated voltage: 230VAC 50/60Hz

Consumption: 2.5VA

Contact capacity: 1 NO plus 1 NC. 16A resistive

24 hours

48 segments

Min programmable interval: 30 minutes

Ambient temperature: -20 to +50 deg C

Connection: Pillar terminal with clamp. 6mm

Drive: quartz controlled motor

Accuracy: within plus or minus 1 sec per day at 20deg C

Reserve: 150 hours

Width: 54mm
