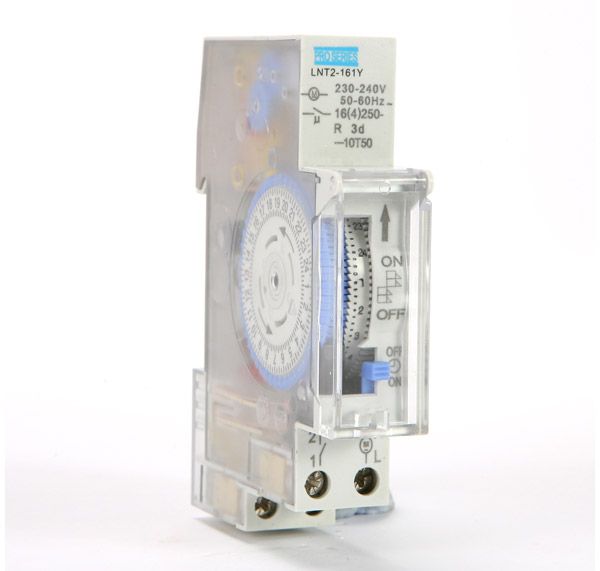

Pro Series LNT2-161Y Segment Time Switch

Pro Series LNT2 – 161Y Segment Time Switch


Constructed from thermoplastic and high quality internal mechanisms ensure accuracy and reliability.

Switches “ON” and “OFF” automatically following a pre-determined program. Suitable for use in domestic, commercial and industrial installations.

24hour dial with 15min segments.

Permanent ON/OFF switch

Switching status indicator

Easy installation.

Fits standard 35mm DIN rail and all standard consumer units.

Technical data:

Rated voltage: 230VAC 50/60Hz

Consumption: 2.5VA

Contact capacity: 1 NO 16A resistive

24 hours

96 segments

Min programmable interval: 15minutes

Ambient temp: -10 to +50 deg C

Connection: Pillar terminal with clamp. 6mm

Drive: Quartz controlled motor

Accuracy: within plus or minus 1sec per day at 20deg C

Reserve: 70 hours

Width: 18mm
