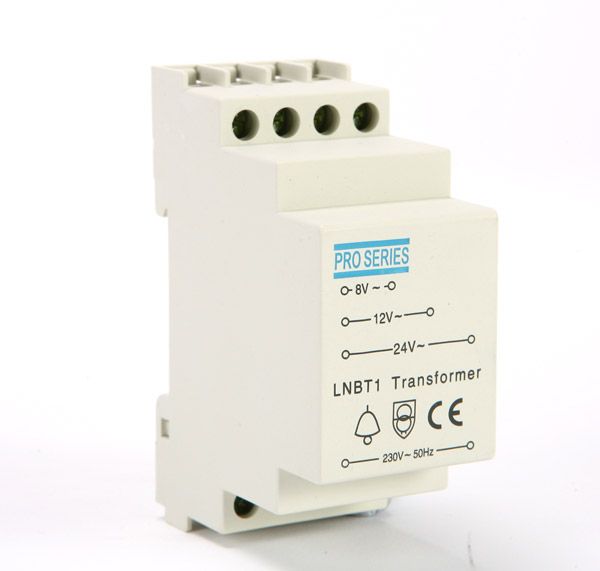

Pro Series LNBT1 Bell Transformer

Pro Series Bell Transformers.

Features:

Constructed from fire and heat resistant self extinguishing plastic.

Safe electrical separation between primary and secondary circuits.

Provides highly accurate extra low voltage up to 24V AC

Low operating temperature.

Fits all standard consumer units

Standard 35mm DIN rail mount


Technical Data:

Rated input voltage: 230V 50/60Hz

Rated output voltage: 4, 6, 8, 12, 16, 24V

Rated power output: 8 VA

Power consumption: 1.15w

Service: continuous operation

Connection: Pillar terminal with clamp. 10mm

Module width: 36mm
