Circut Breakers Pro Series

CIRCUIT BREAKERS PRO SERIES

MCB’S

The Pro Series 6kA MCB range has been developed with high quality in mind and to provide reliable circuit protection with outstanding cost benefits. Suitable for overload and short circuit protection. It can also be used for individual circuit isolation. Constructed with high quality tri-metal components makes the Pro Series range extremely reliable. Manufactured from fire and impact resistant plastic in modules of 18mm. Designed for use on 230/415v 50/60Hz AC circuits. Standard 35mm symmetrical DIN rail mounting. Fits all standard consumer units. 25mm connection capacity, accepts finger / pin type busbar.

Environmental factors are considered in the manufacture of these circuit breakers with many recoverable / recyclable parts.

Standards:

IEC 60898, AS/NZS 60898:1

-------------------------------------------------------------------------------------------------------

RCD'S

The Pro Series 6kA RCD range has been developed with high quality in mind and to provide reliable earth leakage protection with outstanding cost benefits. The Pro Series RCD provides protection against earth fault / leakage by automatic disconnection and isolation of the connected circuit or circuits.

Constructed with high quality components makes the Pro Series RCD extremely reliable. Manufactured from fire and impact resistant plastic in a 36mm module. Designed for use on 230v 50/60Hz AC circuits. Standard 35mm symmetrical DIN rail mounting. 25mm connection capacity.

Environmental factors are considered in the manufacture of these circuit breakers with many recoverable / recyclable parts

Standards:

IEC 61008, AS/NZS 61008.1:2004,

Approvals:

AS/NZS approval No ZO/011

Progress in miniature circuit-breaker technology

PRO SERIES

  • 63A 1 Pole Main Switch
  • 63A 2 Pole Main Switch
  • 63A 3 Pole Main Switch

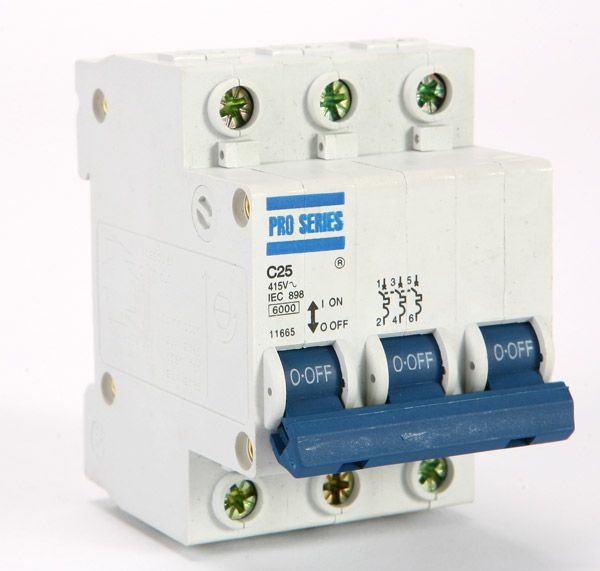

  • 10A - 63A 3 Pole MCB C Curve 6.0KA
  • 10A - 63A 1 pole MCB
  • C Curve 6.0KA

63A - 2 Pole 30MA RCCB

40A - 2 Pole 30MA RCCB

Residual Current Operated Circuit Breaker
