ADEMARK MARKING SYSTEMS

  • Marking and Identification System for all control Panel Applications
  • The ADEMARK marking system allows fast and uniform marking for all control panels applications. One set of ADEMARK numbers, letters and symbols is enough to give any combination of identification to cables, contactors, relays, components and panels.

ADEMARK CABLE MARKERS

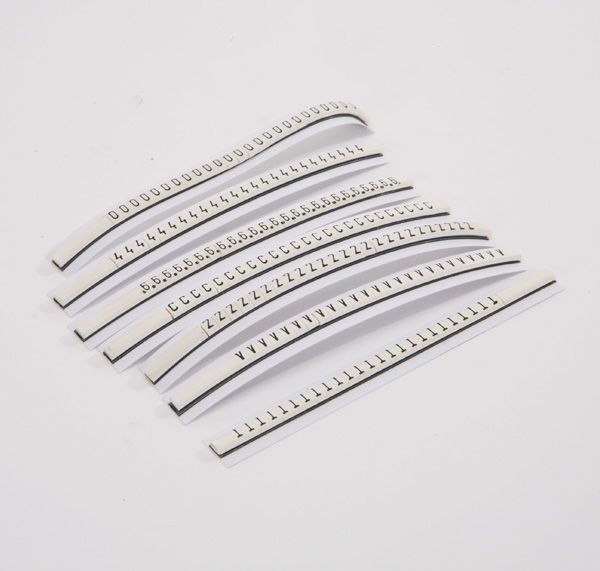

Ademark Markers - one set of numbers and letters is enough to combine any marker on any kind of cable. They are supplied on adhesive tape; detach them and fit them into the carrier.

Strips of: 25 Markers for characters width 3mm - colour Black on White

Numbers: 0 - 9 Part No. SACONT 0, SACONT 1 etc

Letters: A - Z Part No. SACONT A, SACONT B, etc

Symbols: +,-,1, Part No. SARCONT +, SARCONT -, etc

ADEMARK CARRIERS FOR CABLES

Ademark Carriers - are in transparent PVC. Each size is designed to cover a range of cable sizes. Just 6 types of carrier for cables with outside diameters from 1.8 to 26mm and lengths of 16mm to 30 mm.


Part No. Cable O.D mm Cable mm² Lgth 16mm per bag
SAO016 1.8 - 2.5 0.50 - 1.5 100
SAO216 2.5 - 4 0.75 - 2.5 100
SAO316 4 - 6.5 2.50 - 6 100
SAO416 6 - 10 10 - 35 100
SAO516 9 - 15 25 - 70 100
SAO616 15 - 26 35 - 150 25


Part No. Cable O.D mm Cable mm² Lgth 30mm per bag
SAO130 1.8 - 2.5 0.50 - 1.5 100
SAO230 2.5 - 4 0.75 - 2.5 100
SAO330 4 - 6.5 2.50 - 6 100
SAO430 6 - 10 10 - 35 100
SAO530 9 - 15 25 - 70 100
SAO630 15 - 26 35 - 150 25


ADEMARK DISPENSER
ADEMARK TOOLS ADEMARK KIT

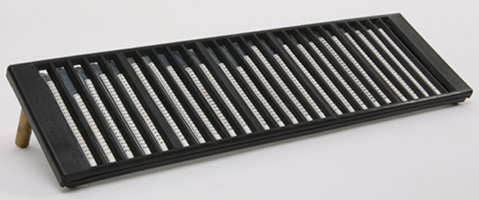

ADEMARK DISPENSER
Holds 25 Marker strips.
Made from high strength nylon.
Can be used flat or inclined.
Immediate replacement of used strips.
Dimensions 360 x 100mm
Part No. SADIST

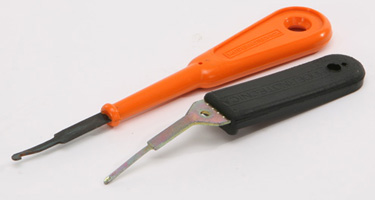

ADEMARK TOOL to pick up and insert characters into carriers.
SAT15R
-tool length 15mm. Plastic handle.
SAT30R Applicator
- tool length 30 mm. Plastic handle
SAUN15 Hook
- steel tool with plastic handle
The ADEMARK KIT is composed of:
1 beechwood case (38x24x12.5cm) with handle
1 Ademark dispenser
1 Ademark tool and hook
1000 cable markers wth numbers 09 and letters:
A B C R S T U V W Y Z + -
750 model 1 carriers, 750 model 2 carriers, 500 model 3 carriers
Part No. SAKITC

ADHESIVE CARRIER CLIP CARRIER - CHANNEL CARRIERS FOR TERMINAL BLOCKS
ADEMARK ADHESIVE TAGS
are transparent PVC with a self-adhesive base.
They can be used for tagging instruments, components, etc.
SATA16 Size 9 x 16mm for 5 digits 		The CLIP TAG is in white PVC with a transparent PVC number holder. This tag attaches to the clip channel for marking series or components.
SATCOO - size 9 x 20 mm for 6 digits
Channel: in grey PVC with fastening on the base. Comes in 50 cm.
SABIAD - Channel with adhesive
The CARRIERS FOR TERMINAL BLOCKS can be used for marking most types of terminal blocks using the same characters as for the other tags
SA1343


CARRIER FOR CABLE TIES in transparent PVC can be used to mark cables, bundles of cables, tubes etc using standard cable tie.

SA1023 - length 23 mm
