LUCA Marostica Series

Marostica Series LUCA

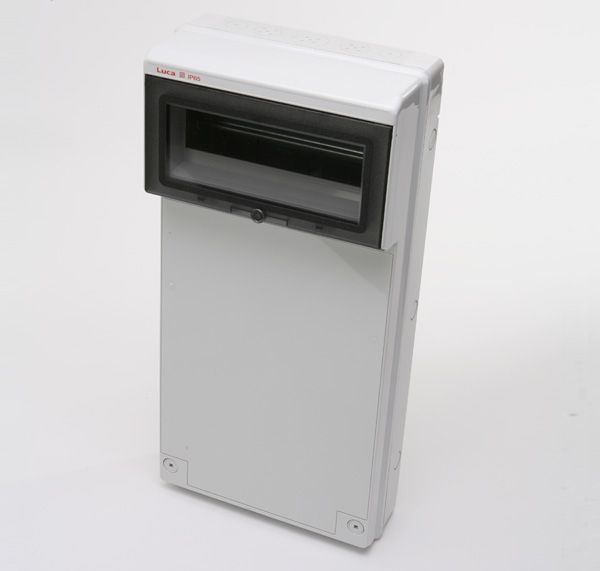

Wall-mounted Modular Switch Boxes

- Plain Front
- Modular Plates

Arranged for the mounting of all the IEC 309 sockets on the market

  • protection rating IP 55-65
  • double-insulation feature
  • colour: grey Ral 7035
  • manufactured in self-extinguishing polycarbonate to Standards UL 94 V2 and resistant to abnormal heat and fire up to 960°C (glow-wire test) according to Standards IEC 695-2-1
  • dimensional stability in continuous working conditions from -25° to +115°C
  • shockproof to 20 Joules
  • resistant to chemical agents (water, saline solutions, acids, bases and mineral oils) and weatherproof
  • high resistant to UV-rays
  • breakable inlets on all sides for fixing cable holders, cable glands, tube/box fittings according to the degree of protection required for the system
  • the control boxes are perfectly symmetrical allowing the entire cover to be left or right hinge-mounted, using the special screws supplied with 140° opening and possibly of sealing
  • opaque or transparent anti-glare doors, suitable for fitting lock and key set, our Art.62876
  • suitable for installation in high fire-risk environments (standard CEI 64-8 V2) and in AD-FT environments (standard CEI 64-2 IV edition)
  • individually packed in cardboard boxes
  • the control boxes are IMQ approved to Standard CEI 23-48, IEC 670
12 MODULES 4 Plates Code

Dimensions (mm)

63214 275 370 140

12 MODULES 6 Plates Code

Dimensions (mm)

63216 275 570 140

Semi Flush Frames available
Codes from 5462500-5462507
