HAGER Orion/Monaco Series

HAGER Orion/Monaco Series Metal Enclosures

Can be fitted with formica panel, or DIN frame with blank and perforated DIN plates.

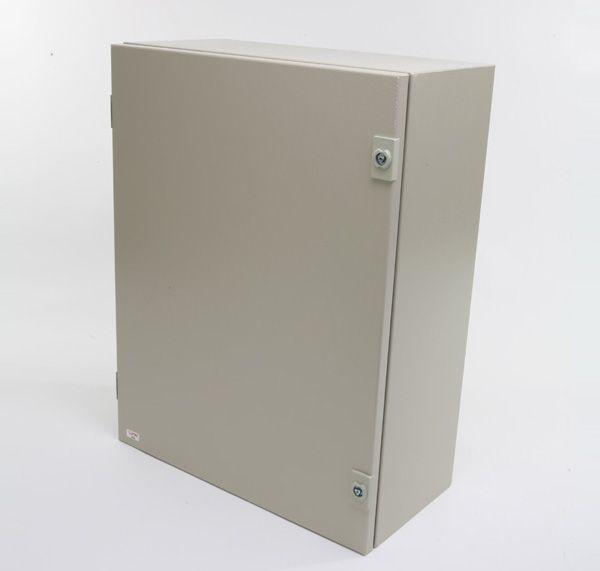

Metal Cabinets - Modular Series

  • Degree of protection IP 65
  • Colour: grey Ral 7032
  • Manufactured from press-formed and robotically welded 15/10 steel plate
  • Hinged mounted front door fitted with a continuous injection polyurethane gasket, equipped with external triangular locks, 140° opening. Cabinets with height of 300/350 are supplied with one lock
  • Internal panels and vertical supports are fitted directly to the cabinets
  • Cable gland plate with sealing gasket on bottom
  • Pre-drilled holes on back of unit for wall-mounting. Wall mount brackets also supplied
  • Earth connection terminal between door, body and metal internal panel. Bonding link supplied
  • Phosphate undercoating and epoxy-polyester paint finish
  • Suitable for installation in environments with high fire risk (law CEI 64-8 V2)
  • Single package in carton box
  • Enclosures are IMQ approved in accordance with CEI C431
  • Approved RINA No 5/164/91
  • Manufactured in accordance with IEC standards
  • Internal metal or insulated panels, hinged extractable frames, slide rails, modular plastic perforated or blank DIN rail plates, key lock handles, ventilator fans, vents and filters, anti condensation cabinet heaters all available separately



Metal Cabinets IP 65

Article
with opaque
door 		Dimensions (mm)
W x H x D 		Modules
H 150 		No. of
ways 		Standard
package
16102 250 300 160 1
16104 300 350 160 2 x 10 20 1
16105 300 350 200 2 x 10 20 1
16109 300 500 200 3 x 10 30 1
16112 400 500 160 3 x 16 48 1
16113 400 500 200 3 x 16 48 1
16116 400 650 200 4 x 16 64 1
16117 400 650 250 4 x 16 64 1
16120 500 650 200 4 x 22 88 1
16121 500 650 250 4 x 22 88 1
16125 500 800 250 5 x 22 110 1
16128 600 800 250 5 x 26 130 1
16129 600 800 300 5 x 26 130 1
16133 600 950 300 6 x 26 156 1
16137 800 950 300 6 x 38 228 1


Accessories
DIN frames, Modular perforated plates with DIN rail and modular blank plates available on request.
17850 Plastic 3 way Lume Key
17852 Aluminium 3 way Lume key
17860 Wall Mount Brackets
