HAGER Orion Plus Series

HAGER Orion Plus Series (was "Londra Plus Series")

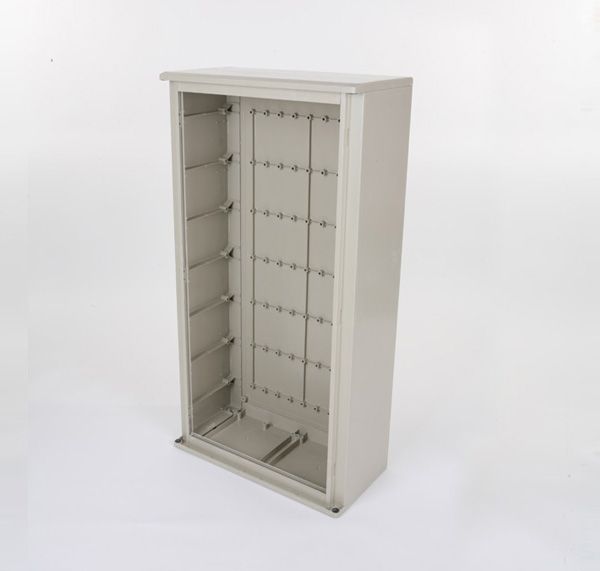

Glass fibre, re-inforced polyester IP65 cabinet. Body and door are separate items.

  • Modular Series
  • Degree of protection IP 65
  • Colour: grey Ral 7032
  • Double insulation feature

MECHANICAL, ELECTRICAL AND CHEMICAL FEATURES

Self-extinguishing material in accordance with UL 94 V-O

  • Resistant to shock of 20 Joules
  • 15 kV/cm dielectrical rigidity
  • Specific resistance of 10cm
  • Temperature resistance between -40C and +110C
  • Resistant to all chemical and atmospheric agents
  • Water absorption 0.15%
  • Glassfibre contents 25%
  • Glassfibre length 25mm
  • Internal metal or insulated panels, hinged extractable frames, slide rails, modular plastic perforated or blank DIN rail plates, key lock handles, ventilator fans, vents and filters, anti condensation cabinet heaters all available separately

Orion Plus Series


Description Code
Slide Rails 17672
Brass Inserts 6mm 17431
Wall Mount Brackets 17863
Key Locks 17688
Mounting Brackets (To Fit Slide Rails) 17678

IP65 Glass Reinforced Polyester Cabinets

Cabinet Body and Door are separate items Insulated
Description

External WxH
All 300 deep

Internal WxH


Wide
Mod
Upper
Mod
Lower
Mod
Enclosure
Code
Door
Code
Door
Code
Panel
Code
Panel
Code
mm 250 150 150
Wall Mount Enclosure 600x1150

500x1050

2 7 17302 17382 17552

850x550

750x450

3 3 17305 17385 17560
850x1150

750x1050

3 7 17307 17387 17562

*

1100x550

1000x450

4 3 17310 17390 17570

*

1100x850

1000x750

4 5 17311 17391 17571

*

1100x1150

1000x1050

4 7 17312 17392 17572
Floor Mount Enclosure
(with plinth)
850x1200 750x1050 3 7 17327 17387 17562

*

1100x1200 1000x1050 4 7 17332 17392 17572

Floor Mount Double Compartment Enclosure
(with plinth)
Upper Lower Upper Lower Upper Lower
850x1750 750x750 750x750 3 5 5 17356 17386 17386 17561 17561

*

1100x1750 1000x450 1000x1050 4 3 7 17364 17390 17392 17570 17572

* Enclosure with double doors.

Accessories:
Hinged extractable frames, Modular perforated plates with DIN rail and modular blank plates all available on request.
